Select Your Installation Scenario
Each application environment has unique requirements for load capacity, corrosion protection, IP rating and cable types. Use this guide to find your best match.

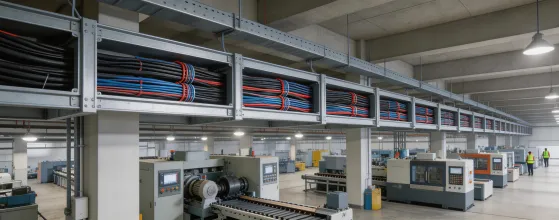

Factory & Production Floor Wiring
Heavy-duty environments requiring high cable loads, chemical resistance and easy future cable additions. Our IEC 61537 class B and C trays handle spans up to 3,000mm and loads to 150 kg/m.
- Perforated cable tray — 50 to 600mm width
- Ladder cable tray — ventilated for high power cables
- IP54 junction boxes for machine connection points
- Steel rigid conduit for mechanical protection zones

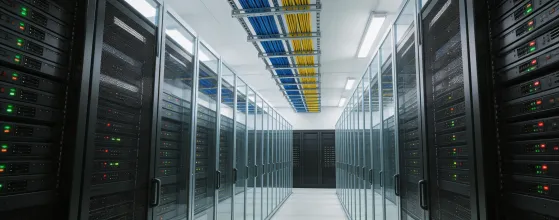

Data Centers & Server Rooms
Structured cabling environments demand organized, ventilated and clearly routed systems. Overhead ladder trays separate power and data cables with defined separation distances per IEC 61918.
- Ventilated ladder tray — maintains airflow around hot cables
- Wire duct — for panel and rack-level signal cable organization
- Stainless cable glands for high-density patch panel entries
- Color-coded terminal blocks for circuit identification

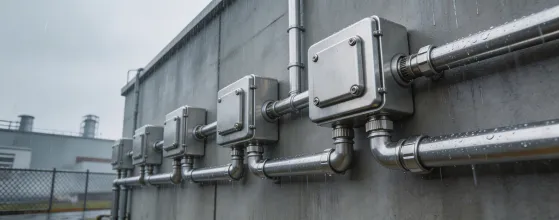

Outdoor & Harsh Environment Projects
UV exposure, rain, temperature cycling and animal intrusion all challenge outdoor cable systems. IP65/IP67 enclosures and hot-dip galvanized trays provide reliable long-term protection.
- Hot-dip galvanized cable tray — 85 µm minimum zinc coating
- UV-stabilized PVC conduit and fittings
- IP65/IP67 polycarbonate junction boxes
- Nylon and stainless cable glands for outdoor entry points

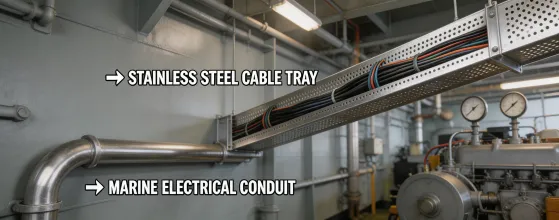

Marine & Offshore Platforms
Salt spray, high humidity and vibration environments require 316L stainless steel or high-build galvanized systems. Our marine cable tray range meets IEC 61537 category C environmental criteria.
- 316L stainless steel cable tray and fittings
- Armored conduit for vibration-exposed cable runs
- IP66 stainless steel junction boxes
- ATEX-compatible cable glands for hazardous zones

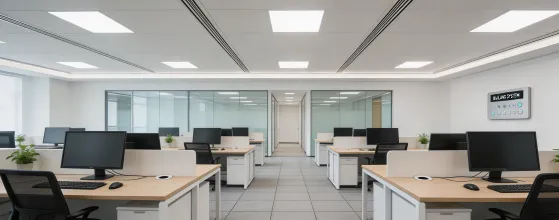

Smart Buildings & Commercial Construction
Clean, concealed installation with easy future access for building management system (BMS), AV and power networks. PVC trunking and mini cable duct offer a professional finish in occupied spaces.
- PVC cable trunking — white and gray RAL finishes
- Mini wire duct for desk and perimeter power distribution
- IP44 junction boxes for in-ceiling and in-wall installations
- DIN terminal blocks for BMS panel wiring

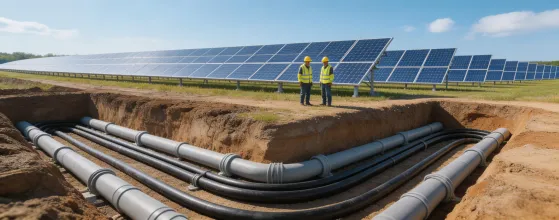

Renewable Energy Installations
Solar PV, wind and battery energy storage installations require UV-resistant, outdoor-rated cable management with low long-term maintenance requirements and compatibility with DC power cables.
- UV-stabilized and halogen-free conduit for string cable routing
- Galvanized cable tray for combiner box to inverter runs
- IP65 junction boxes for DC combiner and monitoring
- LFHF (low-smoke halogen-free) cable glands for enclosures
Your Application Not Listed Here?
We work across petrochemical, rail transit, food & beverage, pharmaceutical and many other demanding environments. Send us your installation details and we'll find the right solution.
Describe Your Application
